ADS120DF 120W Class D Mixer Amplifier with Fire Mute
ADS - Audio Design Services

Features:

  • Compact mini size public address amplifier
  • Rated power 120W, 100V output
  • Line 1-2 input of RCA input and one RCA line output
  • Mic 1 of 6.35mm in front panel with priority & muting

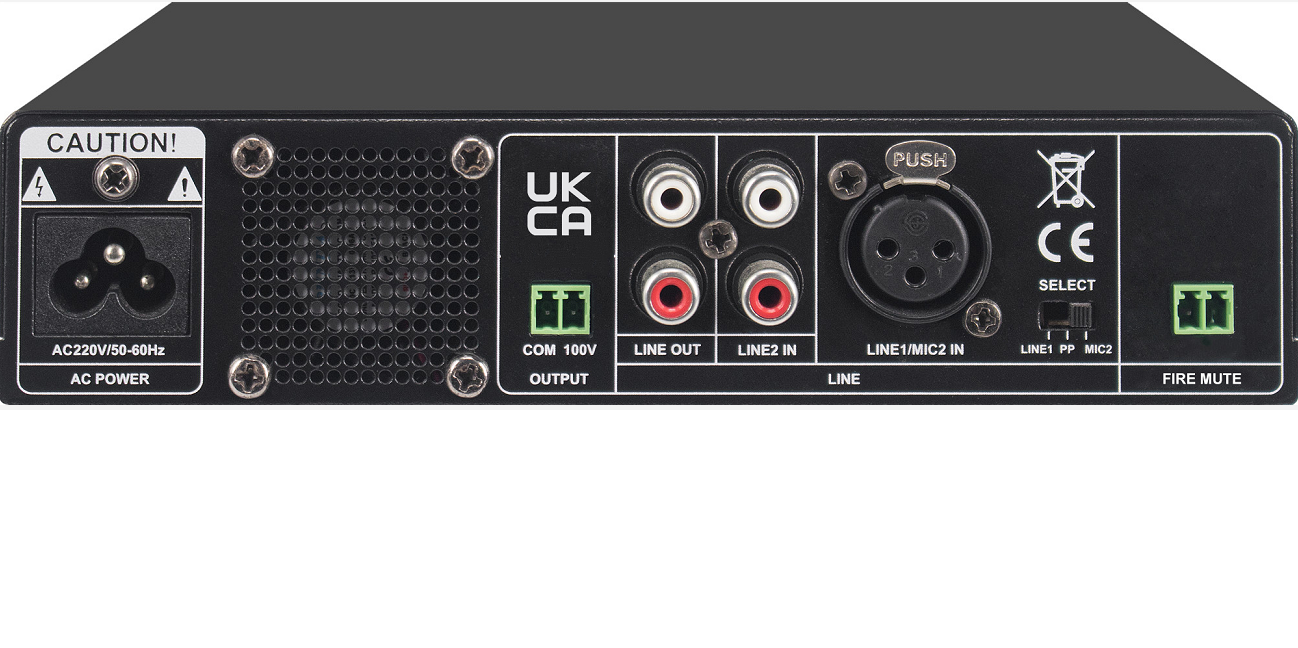

  • Mic 2 of balanced XLR in rear panel
  • Priority level: MIC1>Fire Mute>others
  • Power supply: AC 110-240V
  • Fire Alarm In: (A closing contact will mute all inputs except Mic 1)
£0.00
£192.15
Earn0
reward points

In stock: 72

Sorry! We're out of stock

Add To Your Wishlist

Oh No! This product is out of stock. Would you like to know when it's avaliable again?

Questions & Answers

  • Specifications

    Specification



    Model

    ADS120DF

    Rated Output Power

    120W (Note: Please use a constant-voltage speaker within the power range)


    Rated Output Voltage

    100V

    Sensitivity

    MIC1 IN

    0.005(±1mV)

    MIC2 IN

    0.006(±1mV)

    LINE1 IN,LINE2 IN,

    PRIORITY IN

    0.3(±20mV)VRMS

    PRIORITY IN-100V

    100 VRMS

    SNR

    MIC1, MIC2, LINE1 IN

    ≥74db(MAX.)

    LINE2 IN,INPUT PRIORITY

    ≥80dB(MAX.)

    Frequency Range

    80Hz-15kHz (±3dB)

    THD

    ≤0.5%  (1K under normal working condition)

    Working Voltage

    AC230V/50Hz

    Tone

    Bass

    ±10dB (100Hz)

    Treble

    ±10dB (10kHz)

    Rated Power Consumption

    150W

    75W

    Package Dimensions (L×W×H)

    310×275×120mm

    Machine Dimensions (L×W×H)

    200×190×44mm

    Net Weight

    1.5kg

    Gross Weight

    2kg

    The specification will be subject to changes without prior notice.

  • Manuals & Datasheets

    User Manual
