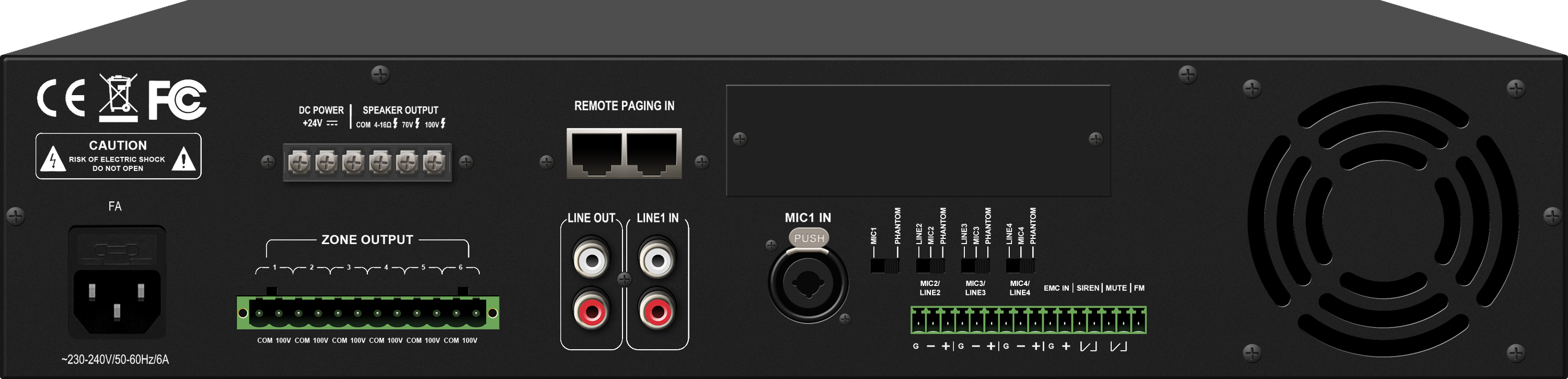

DMA6350U 350W Class D 6 zone Amplifier with Fire Mute and zone attenuators
DSPPA Audio
DMA6350U Series Digital Mixer Amplifier can be used in conjunction with the DMA20 Remote Paging Station, supporting 2-channel RJ-45 remote paging microphone. The amplifier has a screen for intuitive display, with such input sources as 4 MIC, 4 AUX, USB, FM, Bluetooth and TF. It also provides protection function when overload, clipping, short circuit and abnormal working temperature occur. It is an amplifier integrating multiple functions to meet users’ demand.
£0.00
£655.75
John: What is the maximum number of microphone consoles I can have on one amplifier?A:
The Maximum is 6, the amplifier has 2 ports so they can be distributed over either port.
- Specifications
Model
DMA6250U
DMA6350U
DMA6500U
DMA6650U
Power
AC230V 50/ 60Hz
Input Sensitivity
MIC1
10mV ±1mv (Balanced XLR Input)
MIC2/MIC3/MIC4
10mV ±1mv (Unbalanced Phoenix Jacks)
AUX1
350mV±50mv (Unbalanced RCA Input)
AUX2
350mV ±50mv (Unbalanced Phoenix Jacks)
EMC
350mV ±50mv (Unbalanced Phoenix Jacks)
MIC Frequency Response
120Hz～12kHz (±3dB)
AUX Frequency Response
80Hz～15kHz (±3dB)
THD
<1%
Treble Adjustment Range
10dB（±2）
BASS Adjustment Range
10dB（±2）
Phantom Power
+48V
Rated Output Power
250W
350W
500W
650W
Output Voltage of Port
4-16Ω,70V,100V(fixed voltage output)
Current
2A
3A
4A
Protection
F3.15AL
F6.3AL
F8AL
Machine Dimension(D×W×H)
430×390×88mm
Package Dimension:
545×500×165mm
Net Weight
8.6KG
9KG
10.1KG
11KG
Gross Weight
9.8KG
10.2KG
11.3KG
12.2KG
